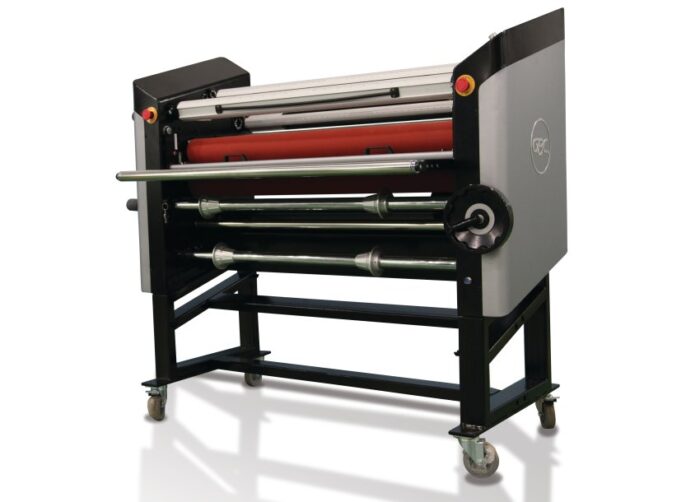

GBC Spire III 64T Thermal & Cold Laminator / Mounter
Price: $19,195
- 20ft/min laminating capability, Thermal or Cold Film
- Larger diameter heat rollers retain heat for longer runs
- Hand crank for opening and closing rollers provides an infinite choice of settings
- Simple, intuitive control panel with LED pressure readout
Description
The GBC Spire lll 64T Thermal or Cold laminator features sleek yet durable all
steel design and capabilities found in higher priced laminators. Designed to
create most applications regardless of whether they require thermal or PSA
films. Running speeds up to 20 ft/ minute and up to 2″ mounting capacities.
Large 4″ rollers retain heat for longer runs. LED pressure readout. Deep feed
table. Reversible motor clears feed jams. Foot pedal for hands free operation.
Equipped with cooling fans and idler chill roller bar. Optional unwinds and
rewinds can be added to allow for roll-to-roll capabilities.
Please call our technical support team for any technical information
1-866-227-4316 Toll Free
Video – https://www.youtube.com/watch?v=P44X7X32Coo
Warranty: 90 Days
Specifications
- Maximum Laminating Width – 64″
- Core Diameter – 3″
- Unwinds/Rewinds Top – 1 Unwind, 1 Rewind. Bottom Front – 1 Unwind, 1 Optional Unwind. Top Rear – Optional Rewind. Lower Rear – Optional Rewind
- Maximum Speed – 20ft/min
- Maximum Temperature- 300° F
- Heat Roller Diameter – 4″
- Independent Heater Controls – Yes
- Maximum Mounting Gap- 2″
- Type of Roller Pressure Adjust.- Infinite crank handle with scale indicator for gap & LED pressure readout
- Protective Shield (heat rollers) – Photo eye
- Roll-to-Roll Capabilities – Optional
- Foot Switch – Yes
- Types of Supply Shafts – 2 Drop-In Autogrip. 1 Drop-In Multicore Media.Additional Autogrip and Multicore Media Available
- Maximum Film Outside Diameter – 10″
- Digital Display with mechanical push-button Control Panel – Yes
- Front Feed Table – Swing-up – Front and Rear table Idler bars – Optional
- Drive System – Sprocket & chain – User adjustable pull roller clutch
- Cooling Fans – Yes
- Idler Chill Roller Bar – Yes
- Weight,Net – 691 lbs.
- Weight,Shipping 880 lbs
- Dimensions:Net. (w x l x h)- 61.5″ x 31.5″ x 55.9″
- Dimensions Shipping: 62.2″ x 32.1″ x 62.2″
- Voltage/Amperage 220 VAC, 24 Amps (NEMA 6-30)
- Warranty:90 Day, Parts and Labor Mfr. Warranty
Additional information
| Weight | 880 lbs |
|---|
