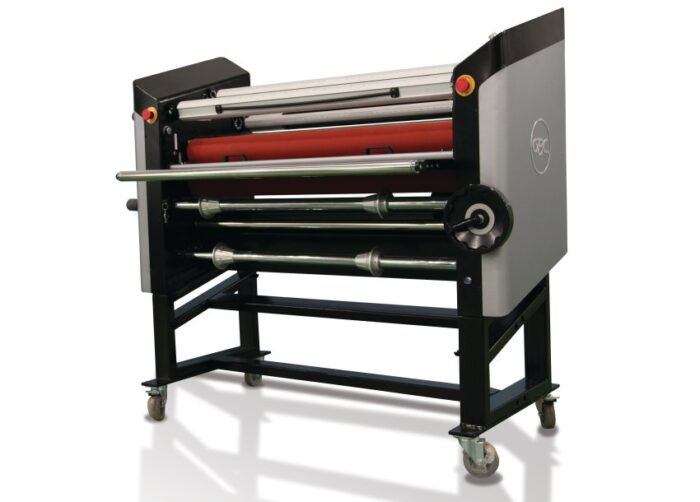

GBC Spire III 44T Thermal & Cold Laminator / Mounter
Price: $16,195
- 20ft/min laminating capability, Thermal or Cold Film
- Larger diameter heat rollers retain heat for longer runs
- Hand crank for opening and closing rollers provides an infinite choice of settings
- Simple, intuitive control panel with LED pressure readout
Description
The GBC Spire III 44T thermal or Cold laminator features sleek yet durable all steel design and capabilities found in higher priced laminators. Designed to create most applications regardless of whether they require thermal or PSA films. Running speeds up to 20 ft/ minute and up to 2” mounting capabilities. Large 4” rollers retain heat for longer runs. LED pressure readout. Deep feed table. Reversible motor clears feed jams. Foot pedal for hands-free operation. Equipped with cooling fans and idler chill roller bar. Optional unwinds and rewinds can be added to allow for roll-to-roll capabilities.
Please call our technical support team for any technical information and pricing. 1-866-227-4316 Toll Free
Warranty: 90 Days
Specifications
- Maximum Laminating Width – 44″
- Core Diameter – 3″
- Unwinds/Rewinds Top – 1 Unwind, 1 Rewind. Bottom Front – 1 Unwind, 1 Optional Unwind. Top Rear – Optional Rewind. Lower Rear – Optional Rewind
- Maximum Speed – 20ft/min
- Maximum Temperature- 300° F
- Heat Roller Diameter – 4″
- Independent Heater Controls – Yes
- Maximum Mounting Gap- 2″
- Type of Roller Pressure Adjust.- Infinite crank handle with scale indicator for gap & LED pressure readout
- Protective Shield (heat rollers) – Photo eye
- Roll-to-Roll Capabilities – Optional
- Foot Switch – Yes
- Types of Supply Shafts – 2 Drop-In Autogrip. 1 Drop-In Multicore Media. Additional Autogrip and Multicore Media Available
- Maximum Film Outside Diameter – 10″
- Digital Display with mechanical push-button Control Panel – Yes
- Front Feed Table – Swing-up – Front and Rear table Idler bars – Optional
- Drive System – Sprocket & chain – User adjustable pull roller clutch
- Cooling Fans – Yes
- Idler Chill Roller Bar – Yes
- Weight,Net – 691 lbs.
- Weight,Shipping 880 lbs
- Dimensions:Net. (w x l x h)- 61.5″ x 31.5″ x 55.9″
- Dimensions Shipping: 62.2″ x 32.1″ x 62.2″
- Voltage/Amperage 220 VAC, 24 Amps (NEMA 6-30)
- Warranty:90 Day, Parts and Labor Mfr Warranty
Additional information
| Weight | 800 lbs |
|---|
