Home » GBC SPIRE II 64C Cold Laminator

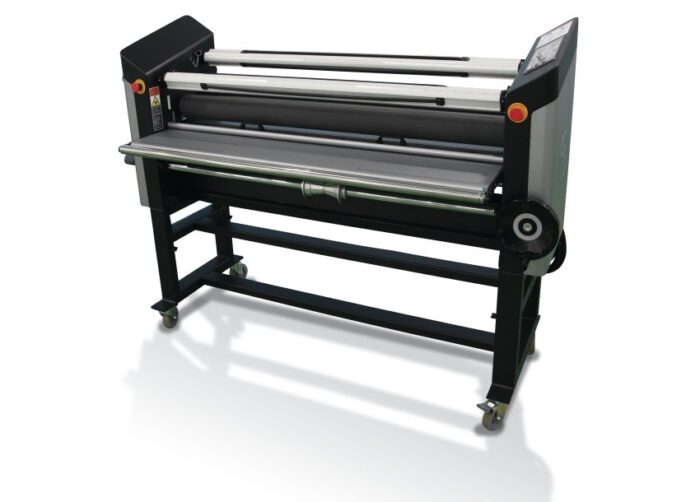

GBC SPIRE II 64C Cold Laminator

Price: $14,995.99

  • Speed – 15 Feet Per Minute
  • Up to 64″ Laminating and Mounting
  • Max. Mounting Gap 1-3/8″
  • 4″ Nip Roller

Click for Info


The GBC Spire II 64C take cold laminating to a new level. This mid-range laminator features sleek yet durable all steel design and capabilities often found in higher priced laminators. Created to protect heat sensitive media, the Spire II 64C promises improved productivity, versatility and quality � all at a great price. With running speeds up to 15 feet per minute and up to 1-3/8″ mounting capabilities, the Spire II 64C keep productivity at the forefront while ensuring the versatility needed to meet ever-changing market demands.

Warranty: 1 Year

Video –

Features and Benefits Easy to Use
Simple, intuitive control panel with LED pressure readout
Variety of speed adjustments for operator comfort
Removable front feed table and fixed rear output table facilities roll changing and feeding
Reversible motor clears feed jams Productive
15ft/min laminating capability
Foot pedal for hands-free operation Versatile
Up to 64″ wide laminating and mounting capabilities
Increased mounting gap allows for mounting to thicker substrates
Larger film rolls can load easily on the machine
Spire II 64C Specifications
  • Durable All steel construction for lasting performance.
  • Maximum Laminating Width 64″
  • Unwinds / Rewinds – Top – 1 Unwind, 1 Rewind, Bottom Front – 1 Multicore Media Unwind, Lower Rear – 1 Optional Rewind
  • Maximum Speed 15 ft./min.-Variable
  • Nip Roller Diameter 4″
  • Maximum Mounting Gap 1-3/8″
  • Type of Roller Pressure Adjust.- Infinite crank handle with scale indicator for gap and LED pressure readout
  • Protective Shield (Main Rollers) – Photo Eye
  • Foot Switch – Yes
  • Type of Supply Shafts 2 Drop-In Autogrip 1 Drop-In Multicore
  • Media Additional Autogrip and Multicore Media Available
  • Maximum Film Outside Diameter 8.5″
  • Digital Keypad Yes
  • Front and Rear Feed Tables – Front, Removable Pivot-up, Front and Rear table Idler bars -Optional | Rear, Fixed
  • Drive System Sprocket & Chain
  • Rear Cut Off – Optional
  • Roll-to-Roll Capabilities – Optional
  • Available Stand – Standard
  • Weight, lbs. – Net: 64C  550 lbs. Shipping: 64C  704 lbs
  • Dimensions Shipping – 85.2″x30.1″x59.6″ , Voltage 115 VAC, 2 Amps

Additional information

Weight 400 lbs
