Home » GBC SPIRE II 54C Cold Laminator, 51″ (Discontinued)

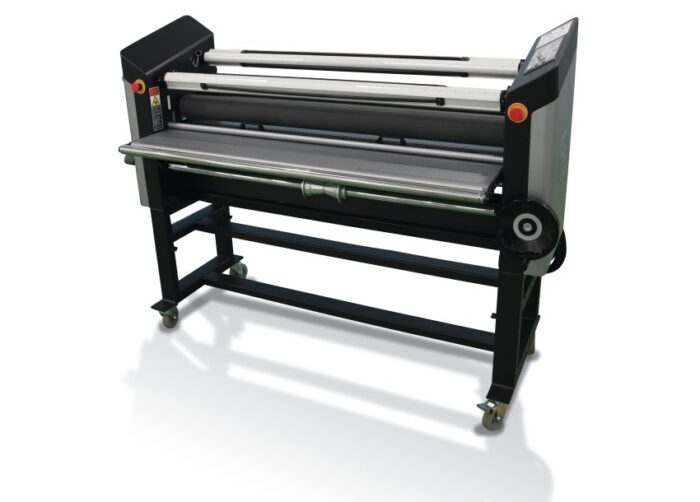

GBC SPIRE II 54C Cold Laminator, 51″ (Discontinued)

Price: $7,495

  • Up to 51″ Laminating and Mounting
  • Speed – 15 Feet Per Minute
  • 4″ Nip Roller
  • Max. Mounting Gap 1-3/8″

Click for Info


The GBC Spire II 54C take cold laminating to a new level. This mid-range laminator features sleek yet durable all steel design and capabilities often found in higher priced laminators. Created to protect heat sensitive media, the Spire II 54C promises improved productivity, versatility and quality – all at a great price. With running speeds up to 15 feet per minute and up to 1-3/8″ mounting capabilities, the Spire II 54C keep productivity at the forefront while ensuring the versatility needed to meet ever-changing market demands.

Warranty: 90 Days

Features and Benefits Easy to Use
• Simple, intuitive control panel with LED pressure readout
• Variety of speed adjustments for operator comfort
• Removable front feed table and fixed rear output table facilities roll changing and feeding
• Reversible motor clears feed jams Productive
•15ft/min laminating capability
• Foot pedal for hands-free operation Versatile
• Up to 51″ wide laminating and mounting capabilities
• Increased mounting gap allows for mounting to thicker substrates
• Larger film rolls can load easily on the machine


Spire II 54C Specifications
  • Durable All steel construction for lasting performance.
  • Maximum Laminating Width 51″
  • Unwinds / Rewinds – Top – 1 Unwind, 1 Rewind, Bottom Front – 1 Multicore Media Unwind, Lower Rear – 1 Optional Rewind
  • Maximum Speed 15 ft./min.- Variable
  • Nip Roller Diameter 4″
  • Maximum Mounting Gap 1-3/8″
  • Type of Roller Pressure Adjust.- Infinite crank handle with scale indicator for gap and LED pressure readout
  • Protective Shield (Main Rollers) – Photo Eye
  • Foot Switch – Yes
  • Type of Supply Shafts 2 Drop-In Autogrip 1 Drop-In Multicore
  • Media Additional Autogrip and Multicore Media Available
  • Maximum Film Outside Diameter 8.5″
  • Digital Keypad Yes
  • Front and Rear Feed Tables – Front, Removable Pivot-up, Front and Rear table Idler bars -Optional | Rear, Fixed
  • Drive System Sprocket & Chain
  • Rear Cut Off – Optional
  • Roll-to-Roll Capabilities – Optional
  • Available Stand – Standard
  • Weight, lbs. – Net: 54C – 497 lbs. Shipping: 54C – 607lbs
  • Dimensions – Shipping – 74.2″x 30.1″x 59.6″, Net 71.1″x 27″x 52.6″,
  • Voltage 115 VAC, 2 Amps

Additional information

Weight 497 lbs
